Doughty Six Track Rail System
The Doughty Rail Walk along track is a complete kit that contains all the required components for supporting drapes in a theatrical and studio application
The Doughty Six Track Walkalong Kit is a complete theatrical rail system that includes all of the required parts for this manually operated system. The Six track range has been designed to be a module system and will work with all of the existing parts within the six track range. This range of rails has been designed for hanging drapes and has been designed to be for theatrical and studio applications.
Some additional brackets and fixing may be required for the installation of the six track system.
Doughty Six Track Walk along Kit component quantities
Included below is the table showing the quantities of each of the parts that will be included within the walk along kits.
Six Track Kit | 1m Rail | 2m Rail | 3m Rail | Adjustable Support Bracket (T63750) | Six Track End Stop (T63760) | Doughty Ball Race Runner (T63756) | Six Track Fixing Kit (T63795) |
---|---|---|---|---|---|---|---|
4m Kit | - | 2 | - | 4 | 2 | 12 | 1 |
5m Kit | - | 1 | 1 | 5 | 2 | 18 | 1 |
6m Kit | - | - | 2 | 6 | 2 | 21 | 1 |
7m Kit | 1 | - | 2 | 7 | 2 | 24 | 1 |
8m Kit | - | 1 | 2 | 8 | 2 | 27 | 1 |
9m Kit | - | - | 3 | 9 | 2 | 30 | 1 |
10m Kit | 1 | - | 3 | 10 | 2 | 33 | 1 |
11m Kit | - | 1 | 3 | 11 | 2 | 36 | 1 |
12m Kit | - | - | 4 | 12 | 2 | 39 | 1 |
13m Kit | 1 | - | 4 | 13 | 2 | 42 | 1 |
14m Kit | - | 1 | 4 | 13 | 2 | 42 | 1 |
15m Kit | - | - | 5 | 15 | 2 | 48 | 1 |
Key Features of the Doughty Six track rails
- The Doughty Six Track is manufactured from high quality steel using a tubular top hanging bar and rectangular section tube rails.
- Curves can be added to the system with radius starting at 500mm
- Electric motor options can be added to the walkalong system to upgrade the system
Features and Benefits of the Six Track Walkalong Kit
Specifications of the Six Track Walkalong Kit

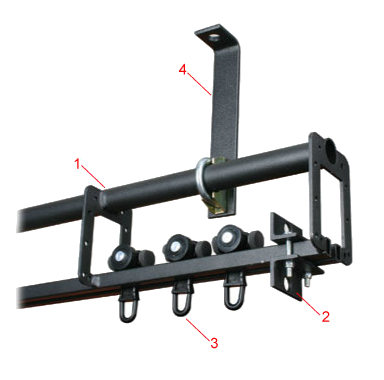

All of the Doughty Walk along kits include the minimum recommended amount of rails and fixing for installation. Please see the quantities of each of the kits below:
- 1. Straight Track
- 2. T63760 End Stop (2 pairs per kit)
- 3. T63756 Ball raced runners (1 per 300mm of track)
- 4. T63750 Adjustable support brackets (1 per 1500mm of track)
