Chamsys MagicQ Stadium Connect
In Stock
£6,600.00 inc VAT
Free Saver Delivery on this item!
Trade customer? Get in touch for trade pricing on Chamsys MagicQ Stadium Connect
Stadium based performance all within a portable PC Wing
The ultimate stadium performance programming wing all within a compact PC wing. Offering lighting designers premium motorised control, 64-universe output, and total RGB customisation all direct from a laptop.
MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the wing, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors with plenty of programmable real estate for your show.
Up to 64 Universes Direct
On the Stadium Connect all universes are available direct from MagicQ PC over industry the standard lighting protocols sACN, ArtNet and Pathport, without the need for additional processing nodes the Stadium Connect is real value for money.
Motorisation
Designed for versatility, the MagicQ Stadium Connect features a motorised playback section that effortlessly adapts to your workflow at the touch of a button. With 10 motorised faders and 10 programmable encoders across 6 switchable banks, you can instantly access up to 202 individual playbacks. The Stadium Connect also supports multiple fader modes to suit a range of live scenarios, including:
Operating Modes
Programmer Mode
Quickly adjust the brightness (intensity) of individual fixtures, groups, or specific channels as you program your show.
Master Mode
Take instant, live control of lighting levels without any pre-programming—perfect for making quick adjustments on the fly.
Theatre Mode
Dual 100mm crossfade faders paired with large GO & BACK buttons offer venues the traditional and precise levels of control expected for theatrical performances.

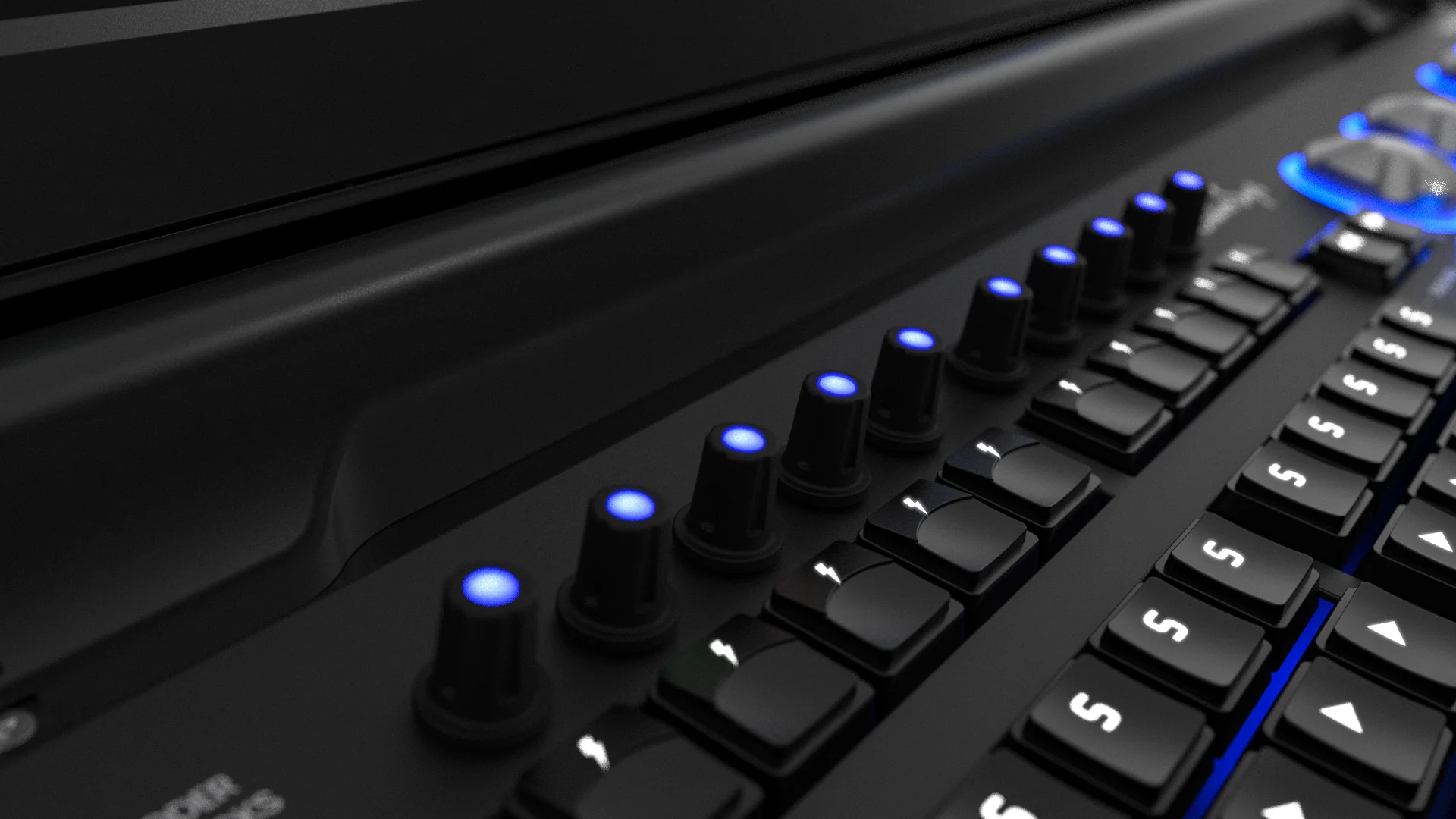

Playback Encoders
Enhance live operation with highly adaptable playback encoders. Each encoder features clear digital labels directly above it on the display, showing its current assignment in real time.
- Total Control: Easily assign them to adjust brightness (intensity), LTP channels, FX size, FX speed, rate, or timing.
- Ultimate Flexibility: Set encoders to control their own independent cue stacks, link them directly to the fader below them, or use them to manage an entire bank or page of playbacks at once.
Illumination & Customisation
The Stadium Connect features illuminated faders, tracks and encoders, together with the new updated graphics that take MagicQ to a whole new level of customisations for lighting designers.
Each playback fader track and encoder top has full RGB illumination enabled, allowing users to select standard built-in functions or customise each queue stack individually.
Which ChamSys Stadium console is best for me?

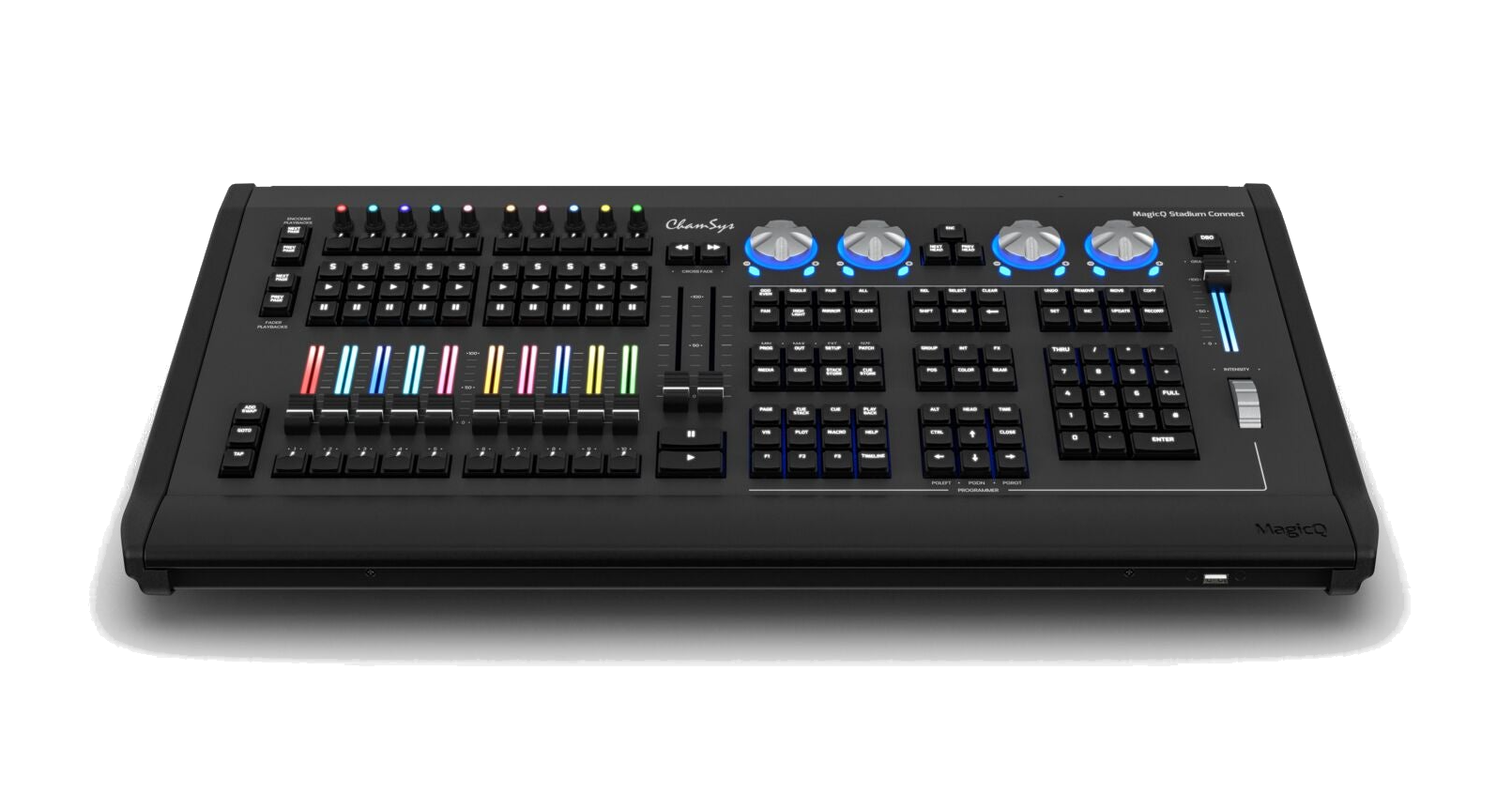

ChamSys MaqicQ Stadium Connect
- Compact & Portable PC Wing with connection required to a Laptop or computer.
- 64 Universes of DMX control out of the box with support for 256 universes for pre-visualization.
- Weighing just under 9Kgs makes it the perfect touring companion.

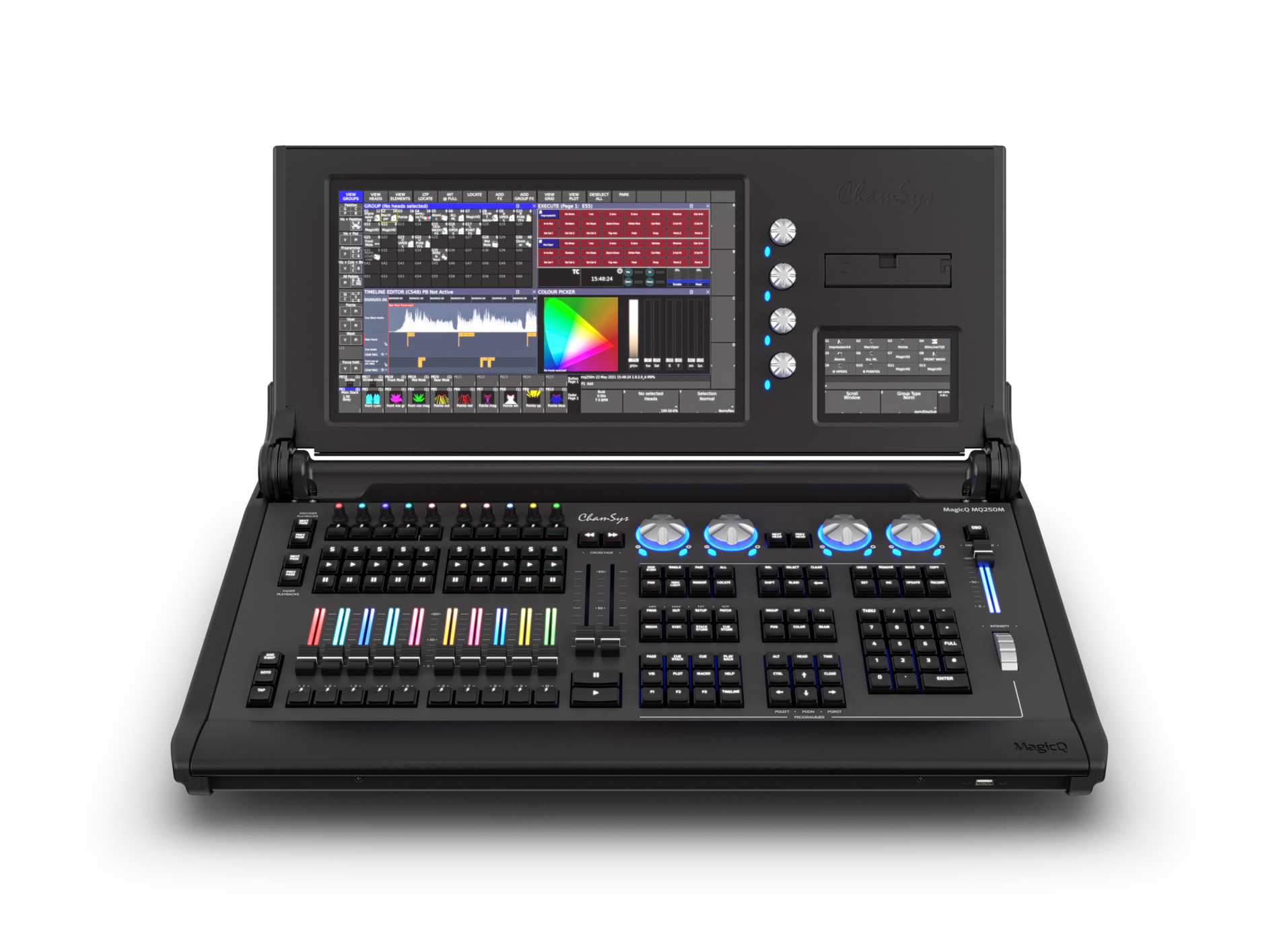

ChamSys MaqicQ Stadium Consoles
(MQ250M, MQ500M, MQ500M+)
- Operation directly via the desk without the need of additional hardware.
- 64 universes direct from the console, with universe upgrade options available
- Designed for permanent install
Key features of the Chamsys MagicQ Stadium Connect
- 10 fully motorised fader playbacks
- 10 encoder playbacks
- RGB illumination of playbacks
- Backlit buttons
- 64 universes direct from MagicQ for Art-net/sACN output
- 400 visualisation universes for pre-programming
- Network port acts as network interface for PC
- Dual 100mm Manual Cross Faders
- 2 dedicated high power USBs for charging of phones/tablets
Features and benefits
Flagship Stadium-Class Layout
The ChamSys Stadium connect features the same intuitive button and fader layout as the larger MQ250M and the MQ500M stadium consoles offering familiarity across the stadium family of consoles all packed within an easily transportable form factor.

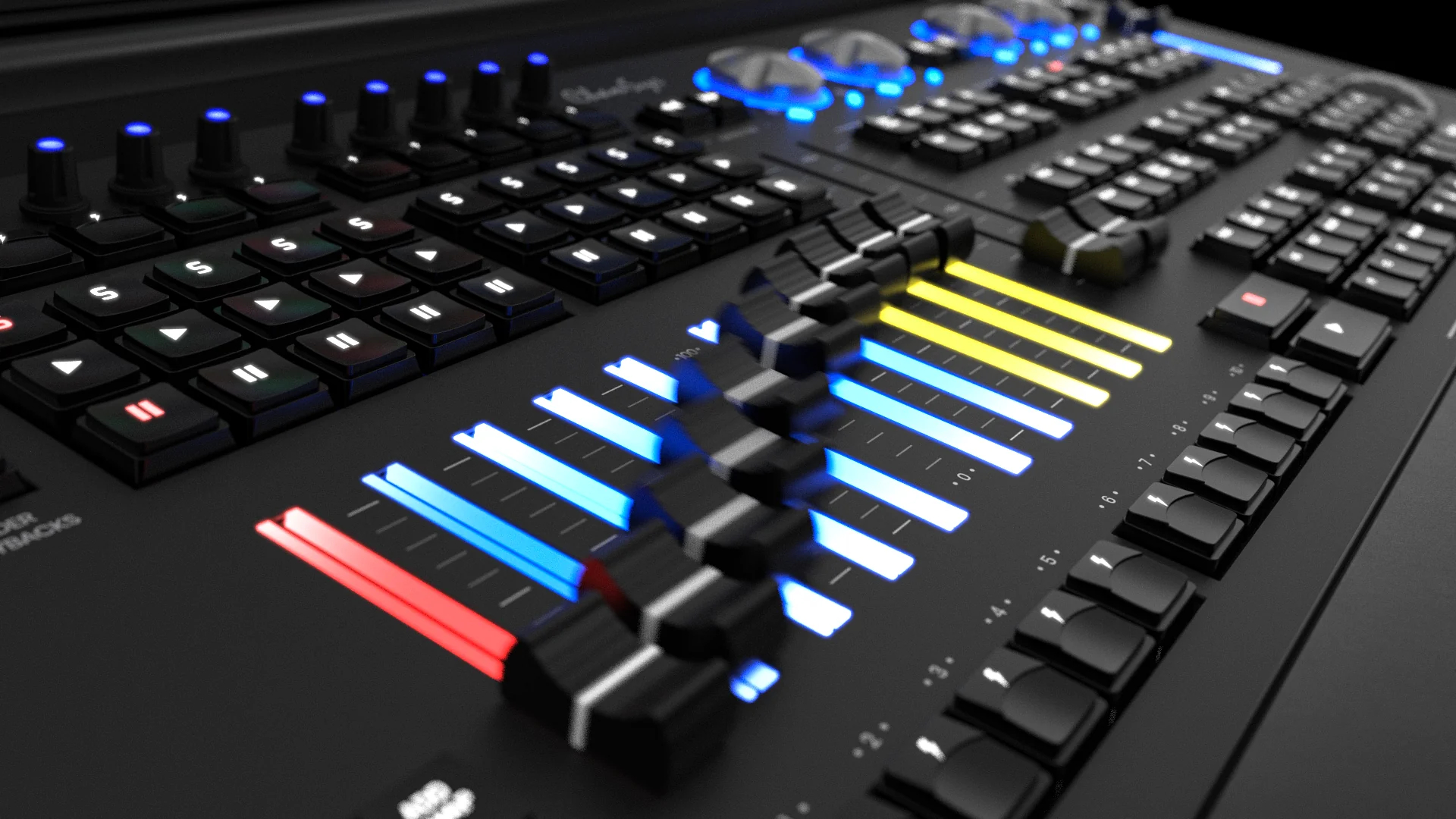

10 Fully Motorised Faders & 10 Playback Encoders
The motorised faders included within the stadium connect jump to the correct levels when switching pages and menus, preventing "blind" levels or unexpected jumps in brightness during performances.

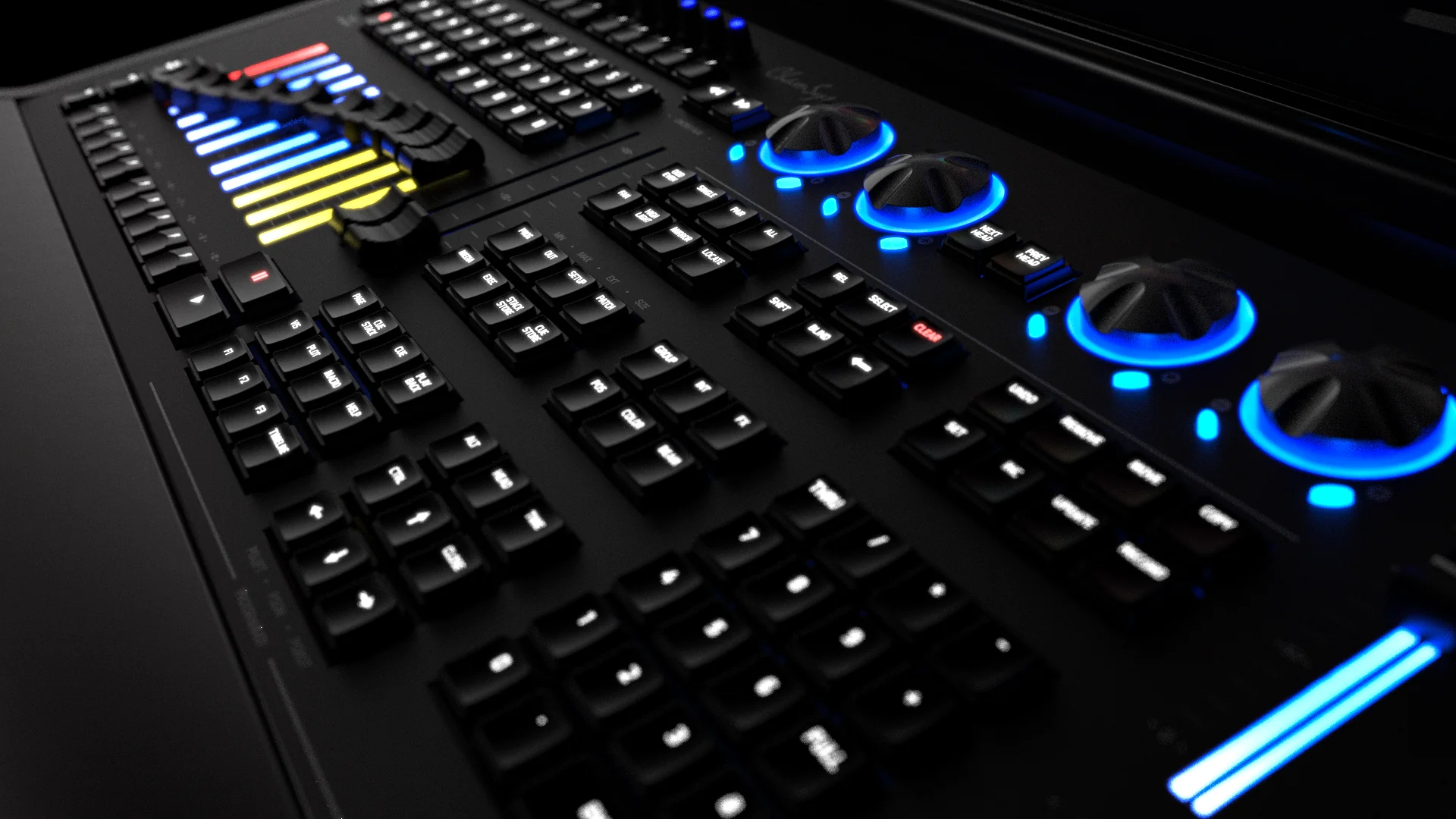

Full RGB Visual Customisation & Color-Coding
Fully backlit keys with RGB illumination on every fader track and encoder top.
Flexible Operational Modes (Programmer, Master, Theatre)
Flexible operational modes offers the flexibility to adapt the stadium connect to the venue. Whether you need traditional GO & BACK buttons for use in theatres, quick operations to busk shows live or want to amend lighting fixtures in real time.
Specifications
Does the Stadium Connect work as a standalone console?
How many DMX universes can it output directly?
Does it unlock the "Demo Mode" restrictions on the MagicQ PC software?
Full Specifications
Hardware Specifications:
- Direct DMX Outputs: 4
- Motorised Playbacks: 10
- Encoder Playbacks: 10
- Total no of Playbacks: 20 (10+10)
- Dual Cross Faders: Yes
- Attribute Encoders: 4
- Backlit Keys: Yes
- Illuminated Playback/Encoders with RGB control: Yes
- Intensity Wheel: 1
- Network Ports: 1
- USB Ports : 4
- Audio Input Sound to Light: Yes
- MIDI Ports 1 in and out: Yes
- LTC Timecode Ports in and out: Yes
- 10Scene Port: 1
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
- Universes direct from software (via Artnet/sACN/Pathport): 64
- Visualisation Universes: 256
- Max Number of DMX Channels: 32,768
- Max Number of Fixtures Supported: 32,768
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
Included Accessories:
- Dual Colour Desk lights: 2
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
- USB Cable: 1
Stadium Connect Weights and Dimensions:
- Width: 680mm (26.8")
- Depth: 364mm (14.3")
- Height: 85mm (3.3")
- Weight: 8.7kg (19.1bs)
