Vari-Lite Zero 88 FLX S24 4 Universe (2048 Channel) Lighting Control Console
In Stock
£1,575.00 inc VAT
Free Saver Delivery on this item!
Four Universe 24 Fader DMX Lighting Controller
Zero 88 (Vari-Lite Strand) FLX S Series lighting consoles let you quickly create beautiful looks in less time using the award-winning ZerOS software platform. The simplicity of ZerOS makes these lighting desks the perfect addition for schools, theaters and many other entertainment venues.

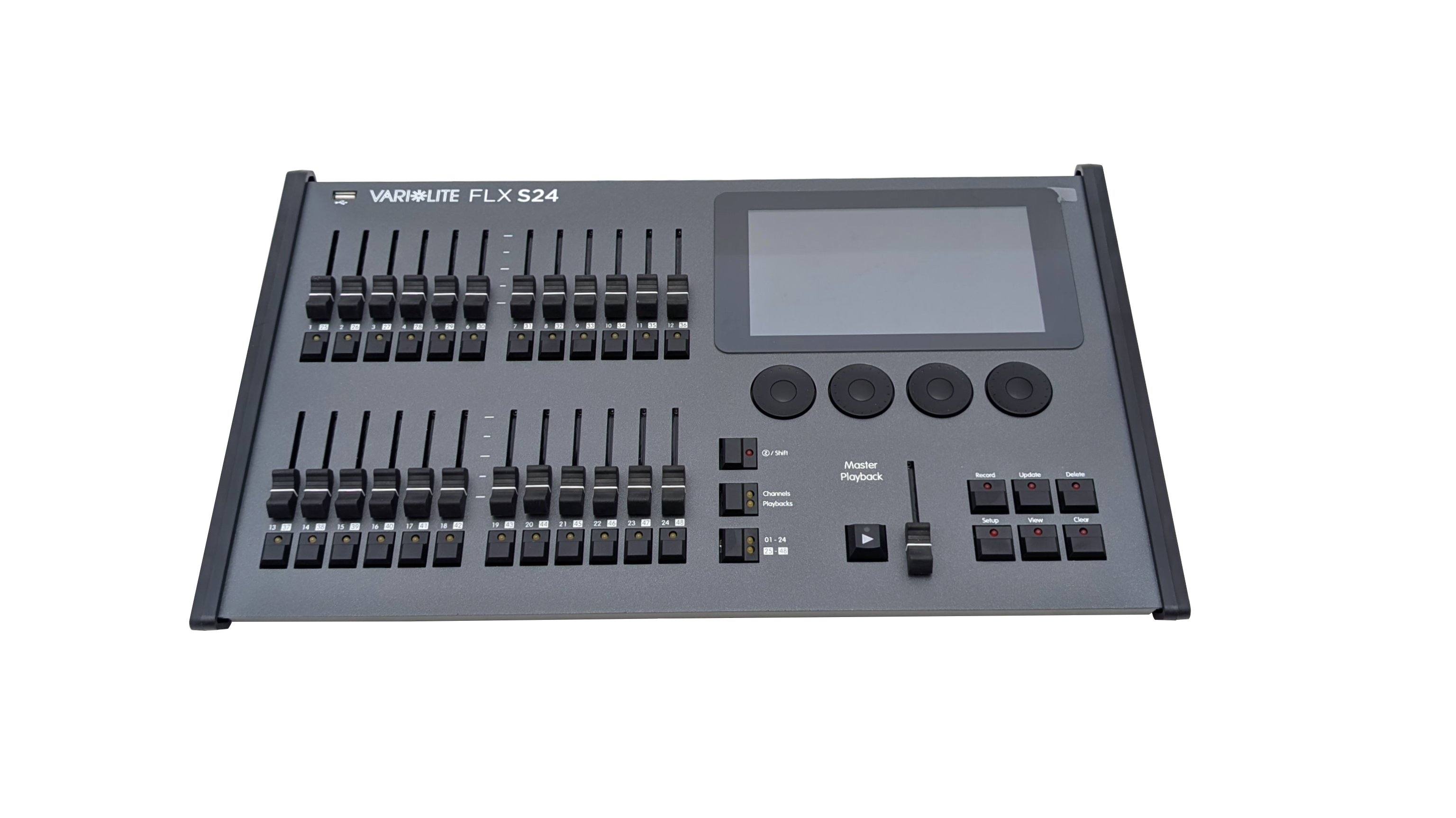

The FLX S24 Console is a 24 fader lighting control surface that brings the legacy and power of our consoles in an easy-to-use package at an affordable price. A lighting design-centric console built for the non-designer, the FLX S24 allows any user to quickly create beautiful looks in less time, and is the perfect console for schools, houses of worship, broadcast studios, and portable applications.
Built on the award-winning ZerOS software, the FLX S24 includes an intuitive, user-friendly interface with a 7” multitouch screen, four physical encoders and seven dedicated physical buttons for easy operation. The ZerOS software makes it easy to design the perfect look, with multiple color selection options and intuitive moving head fixture control. To ensure users can get the job done without getting lost, ZerOS includes an on-board Guidance tool and quick select Z button.
The FLX S24 Console supports 96 fixtures and offers 2048 channels of DMX control connected via the two 5-pin DMX ports or Ethernet based DMX. To simplify patching and monitoring of connected luminaires, the ZerOS software includes exclusive RigSync technology, for a seamless experience with less effort.
Software must be upgraded to ZerOS 7.15 for 4 Universes
Key Features of the Zero88 Four Universe Lighting controller
- Control up to 96 LED, moving lights and conventionals
- 24 multi-function faders
- 49 playbacks (each with submaster & full cuestack functionality)
- 48 groups, 4 x 48 palettes (Colour, Beamshape, Position, Effect)
- 19" rackmountable (6 rack units high)
- Multi-touch interfaces for Colour and Moving Lights
- Dedicated GO button & playback fader for theatrical control
- Hands-on intuitive control via 4 encoder wheels
- Free mobile apps for wireless control of your ZerOS console on iOS and Android devices
- Multi-lingual step-by-step touch screen guidance
- Art-Net 4 and sACN for network output & wireless connection to smart phone / remote monitors
- 7” multi-touch screen
- Automatic Groups, Palettes, Effects and Macros
- Colour picking, mixing & image capture
- Mood Boards by LEE Filters
- Additive, subtractive and HSV control
- Store single or mulitple cues on each of the playbacks
- Built-in fixture library
- RDM compatability
- Showfile compatability with other ZerOS consoles
- Quiet, dust free, fanless operation
- One DMX universe, upgradable to two universes
- Two XLR Outputs (1 x 5 pin + 1 x 3 pin)
Features and benefits
3-Step Programming
Select the fixture you want, adjust everything to the look you want, and then select where you want to control it. No need for complex scripting or confusing keystrokes.
Multitouch Screen
Use the onboard 7” screen to easily adjust colors, moving lights, and other settings. You can even pinch along a color picker or image to spread multiple colors across a group of selected fixtures.
Tons of Control
Get the ideal console for your application with options to add up to 96 fixtures depending on the model. With FLX S, you get 2048 channels of affordable lighting control.
Creative Color Selection
Onboard image picker and Mood Boards by LEE Filters make it get the right balance of colors. With the image picker, users can upload a photo that matches their mood, such as fire, water, a sunset, or a corporate logo.
Onscreen Guidance
Never get lost while using the Strand FLX S Series thanks to the Guidance tool that provides situationally aware, but unintrusive on-screen tips and advice in English, Spanish, French, or German.
5-Pin or Ethernet-based DMX
FLX S offers up to 64 universes of connectivity, with 2 onboard 5-pin DMX ports, as well as support for Ethernet protocols such as Art-Net, sACN, CITP, etc.
Specifications
Hardware - Front Panel
- 24 Multifunctional Faders (channels or playbacks, with select or go buttons)
- Internal 7” multi-touch screen
- Master Playback with Go Button playback and master intensity
- 4 embedded encoder wheels with select buttons
- Dedicated buttons for key functions
Hardware - Inputs/Outputs
- 1 5-pin XLR connector for DMX and RDM
- 1 3-pin XLR connector for DMX and RDM
- Ethernet (visualisation and Remote Apps)
- 4 Universes over Ethernet using Art-Net 4 or sACN
- 2 multipurpose USB ports (saving shows, connection of accessories & Wings, software updates)
- External power supply
Software - capacity
- 48 Fixture Controls (using single or multiple DMX channels)
- 49 Playbacks (equivalent of Cue Stacks, Submasters or Chases)
- 10,000 cues
- 4 x 48 Palettes (Colour, Beamshape, Position, Effect)
- 48 groups
Software - features
- Integrated colour picker and “Mood Boards by LEE Filters”
- Multi touch Pan/Tilt grid
- Auto palettes, groups and fixture macros
- Gobo previews and library
- Move on Dark
- Tracking and Non-Tracking modes available
- Support for wireless remote control through handheld devices and remote monitors
Electrical
- Supply voltage range: 100 - 240V AC; MAX 2A
- Frequency: 50 - 60Hz
- Operating temperature: +5 to +40°C
